INTRODUCTION

LEGEND
1. Inlet
2. Inlet Chamber
3. Bottom Diffuser Plate with ozzles
4. Filter Media
5. Top Diffuser Plate with Nozzle
6. Outlet Chamber
7. Outlet Manifold
8. Clean Water Control Valve
9. Clean Water Pipe to Reservoir
10. Air Pipe to Blower
11. Air / Scour Control Valve
12. Flush Valve
13. Rinse Valve
14. Flush Pipe to Waist Water

HOW IT WORKS

The is a unique upflow floating media clarifier that converts raw water from a river or dam into World Health Organization standard drinking water. The Purification plant consists of chemical dosing pumps, an air blower, the Cubic Clarifier unit and a chlorination unit.

Pre-treated raw water to be clarified is pumped in through the nlet (1) pipe into the Inlet Chamber (2) of the vessel. The water flows through the Diffuser Plate (3) and up through the Filter Media (4) where the coagulated particles are trapped. Clean ater enters into the Outlet Chamber (6) and overflows from the top of the vessel through the Outlet Manifold (7) and Clean Water Control Valve(8) to the Clean Water Storage Facility (9).

STANDARD FEATURES

  • The Filter Media has a relative density of less than 1.
  • Minimum operating pressure of 1 bar (100 kPa).
  • Maximum operating pressure of 2 bar (200 kPa).
  • Flush control is a 220 VAC Automatic Flush Controller.
  • Filter housing materials is carbon steel.
  • Coating:
    – Powder Coated (recommended) or
    – Galvanized or
    – Stainless Steel on request

    • PATENT APPLICATION or PUBLICATION NUMBER
      RSA patent 2009/08030; Angola 1570/PCT/ZA2008/000106; ARIPO
      AP/P/2010/00513;Australia 2008 329598; Columbia 10-051673;
      Indonesia W00 2010 01678; Malaysia PI 2010 001876;
      Mexico MX/a/2010/005525; OAPI 15089

     STANDARD FEATURES

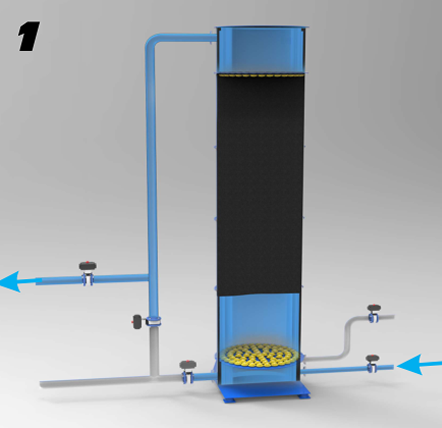

    1. Clarification Cycle:
    Pre-treated raw water to be clarified is pumped in through the bottom of the vessel which flows up through the media where the coagulated particles are trapped. Clean water overflows from the top of the vessel to the clean water storage facility.

    2. Scour Cycle:
    Once the media is saturated with coagulated dirt, the flush cycle is initiated. The inlet valve (multi-unit) or pump (single unit) is closed or switched off. The chemical dosing pumps are switched off. The scour/air valve is opened to allow an air flow to scour the floating media. This cycle is normally 2 minutes.

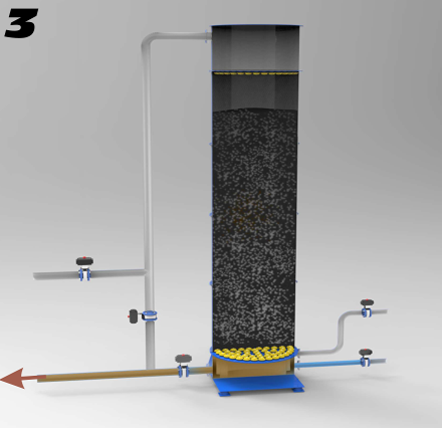

    3. Flush Cycle:
    The air valve is switched off and the flush valve opened to allow for drainage of the sludge from the vessel (plus minus 3 to 5 minutes). The flush valve is closed.

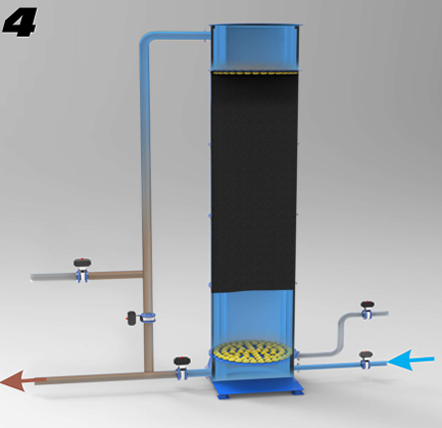

    4. Rinse Cycle:
    The pre-treated raw water is allowed to flow into the bottom of the vessel as in the clarification cycle. The rinse valve is opened allowing the vessel to fill and overflow . The rinse valve is closed allowing the for 2 to 3 minutes clean water to overflow to storage facility. the clear water
    The complete Flush and Rinse cycle should last for to 10 to 16 minutes.

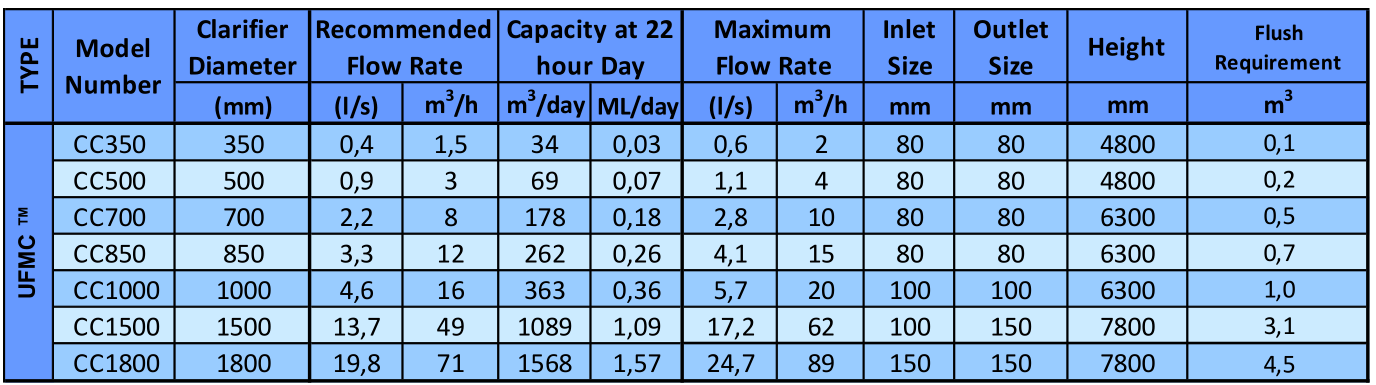

    TECHNICAL INFO
